English 104 key, exchange key cap set for Majestouch

English 104 key, exchange key cap set for Majestouch
  • Model Number : FKCS104EB
  • Product Name : English 104 key, exchange key cap set for Majestouch
  • JAN Code : 4515213011331
  • Brand : Entire keycap set
  • Status : Available now


Majestouch/Majestouch Tenkeyless series common key cap English 104 key

FILCO Majestouch, Majestouch Tenkeyless dedicated key cap set.
ABS key cap stamped with laser, applying UV coating.
Revives as brand-new only changing the key cap of accustomed keyboard.

Key Layout

** Click to enlarge



Photo gallery

  • ReplaceableKeycapsSet: image 1 of 6 thumb
  • ReplaceableKeycapsSet: image 2 of 6 thumb
  • ReplaceableKeycapsSet: image 3 of 6 thumb
  • ReplaceableKeycapsSet: image 4 of 6 thumb
  • ReplaceableKeycapsSet: image 5 of 6 thumb
  • ReplaceableKeycapsSet: image 6 of 6 thumb


How to unfix the key using stabilizer

1. For Majestouch series, large-sized key of "Shift key", "space key" and "Enter key" are using stabilizers (part of wire). In order not to break the component and wire, it is necessary to remove prudently for these keys.

* Housing is taken off first for taking photos.

Step1

2. White component is located in backside of the key cap and wire is plugged into the hole.

Step2

3. While holding down the wire with precise driver, shift the key cap to side, which able to pull out the wire from the white component.
Please note when unreasonable power is applied, there is a possibility the component and wire might break.

Step3

4. Pull out the wire from the white component also on the other side to finish. To set the key cap again, procedure is done conversely above.

Step4

By any chance if the key cap, component, wire or key switch is broken,
please be noted that repairs will be made at a reasonable charge of cost.



Compatible models

Majestouch series
Majestouch Tenkeyless series



Specification

Number of key104 keys
PrintOn top

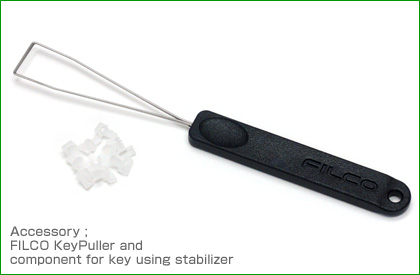

AccessoryKey drawing tool FILCO KeyPuller, Component for stabilizer use key


We may change our product specification or design without a notice.
