Majestouch 2 Camouflage-R [CHERRY MX SILENT/Tenkeyless/US ASCII/MULTICAM]

Majestouch 2 Camouflage-R [CHERRY MX SILENT/Tenkeyless/US ASCII/MULTICAM]
  • Model Number : FKBN87MPS/EMR2
  • Product Name : Majestouch 2 Camouflage-R [CHERRY MX SILENT/Tenkeyless/US ASCII/MULTICAM]
  • JAN Code : 4515213015537
  • Brand : Majestouch 2 Camouflage-R
  • Status : Available now


[Majestouch for gamers now available!]

MULTICAM

Finished in popular camouflage pattern, Multicam®, for making games come alive in your room!
Water transfer printing method is being used to apply the pattern on the keyboard.
This sedate, but outstanding, design is also suited to everyday use.
Lock/Num/Caps/Scroll indications around LED have been omitted.
This Multicam comes with media functions such and you can adjust the volume of music and you can stop and play.

* MULTICAM® is one of the newest sophisticated universal camouflage patterns.
A number of military forces are adopting the pattern for its high functionality.



[2 tone color keycap with stencil font]

stencil

We have chosen two tone keycaps with stencil fonts using UV printing.
This is the ideal combination to match the Multicam® case pattern.
The Stencil font evokes the feel of marking systems used by the military.
It will improve with time to give the authentic patina of a military device.
Camo from Filco. The weapon of choice. Your own ultimate keyboard!



[Not only appearance but also basic functions have improved!]

FILCO board

Double layers is adopted for a new board. Through a hole of each switch has been firmly soldered.
With this, it can release any excess load or vibration that you make when you type in to a board not only to a metal plate inside.
It enables you to enjoy a better typing feel!

We also brought the rate of its data transfer for PC to the highest which provides you faster response.
This function as well as N-key rollover meet for the professional gamers.
[Polling Rate 1000Hz / Reporting Rate 1ms]



[CHERRY MX Switch]

Cherry MX SILENT Switch

Cherry MX SILENT Switch :
Cherry MX Silent Red is a linear switch without a click. It uses same specification as traditional Cherry MX Red switch.
You can type smoothly with the activation force of 45cN, very lightly.



[A true N-key rollover]

It is the functionality by which all the typed keys are recognized on the PC, even when many keys are typed simultaneously.
All the keys typed simultaneously are recognized on the PS/2.
(Limited to 6 keys typed simultaneously for the USB due to the specifications of USB.)
A completely dedicated electronic circuitry to this model !
On our models a diode is soldered on the printed circuit for every key switch to prevent from counter currency.



[Compatibility with USB and PS/2]

A USB cable is connected to the keyboard. Plug&Play is available on each Windows system.
A PS/2 interface is also available to use the PS/2 Conversion Adapter included in the package.

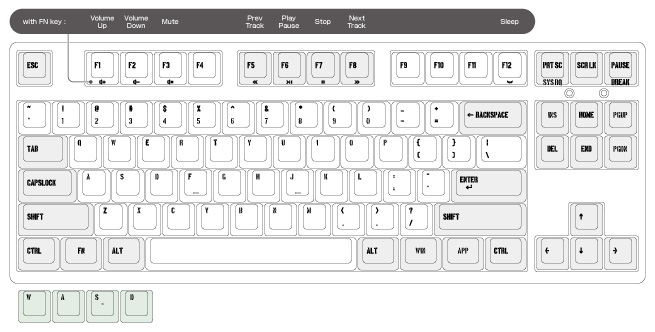

[US ASCII Key Arrangement]

US ASCII Key Arrangement

** Click to enlarge
** Lock Caps/Scroll indications around LED have been omitted.
** Windows key on the very bottom left side has been replaced with Fn key. Refer the layout for details



[Photo gallery]

  • Camouflage-R Tenkeyless US: image 1 of 20 thumb
  • Camouflage-R Tenkeyless US: image 2 of 20 thumb
  • Camouflage-R Tenkeyless US: image 3 of 20 thumb
  • Camouflage-R Tenkeyless US: image 4 of 20 thumb
  • Camouflage-R Tenkeyless US: image 5 of 20 thumb
  • Camouflage-R Tenkeyless US: image 6 of 20 thumb
  • Camouflage-R Tenkeyless US: image 7 of 20 thumb
  • Camouflage-R Tenkeyless US: image 8 of 20 thumb
  • Camouflage-R Tenkeyless US: image 9 of 20 thumb
  • Camouflage-R Tenkeyless US: image 10 of 20 thumb
  • Camouflage-R Tenkeyless US: image 11 of 20 thumb
  • Camouflage-R Tenkeyless US: image 12 of 20 thumb
  • Camouflage-R Tenkeyless US: image 13 of 20 thumb
  • Camouflage-R Tenkeyless US: image 14 of 20 thumb
  • Camouflage-R Tenkeyless US: image 15 of 20 thumb
  • Camouflage-R Tenkeyless US: image 16 of 20 thumb
  • Camouflage-R Tenkeyless US: image 17 of 20 thumb
  • Camouflage-R Tenkeyless US: image 18 of 20 thumb
  • Camouflage-R Tenkeyless US: image 19 of 20 thumb
  • Camouflage-R Tenkeyless US: image 20 of 20 thumb


[Attention]

Water transfer printing method is being used for this product.
Please be aware of the following attentions that will exclude your RMA terms :-

  • Patterns are different for each keyboard due to the printing method.
  • The edge on the bottom housing where you cannot see may be causing a minor uneven coloring due to the printing method.
  • Due the texture of the keyboard frame, designed to reduce unwanted reflections, and the printed method used, some loss of letter definition is possible but this is minimal and should not detract from the overall appearance of the keyboard.
closeup


[Sleep function]

To wake up from sleep mode :-

  1. Open device manager
  2. Double click the "keyboard"
  3. Double click the "HID keyboard device"
  4. On the Power Management tab, tick "Allow this device to wake the computer"
    ** OS that do not show "Power Management" tab are exempt


[Platform Support]

Windows XP/Vista/7/8/10 PC with PS/2 port or USB port



Specification

Key switch / Number of keysCHERRY MX markPinkSW
Cherry MX SILENT Switch (linear)/87 keys
Key arrangementUS ASCII
Key pitch / Key stroke19mm / 3.7mm
Dimensions / WeightW357xD137xH37mm(49mm raised up by stand)/980g
InterfacePS/2, USB (PS/2 interface is available with PS/2 Conversion Adapter)
Cable length1.5m
AccessoriesGreen key (A/S/D/W), Key Lock (5pcs), FILCO Key Puller
NoticesAll our FILCO Keyboard have already passed the CE, FCC and RoHS certification.
Windows 7 Logo Program


We may change our product specification or design without a notice.
